Cove -from SolBe
-

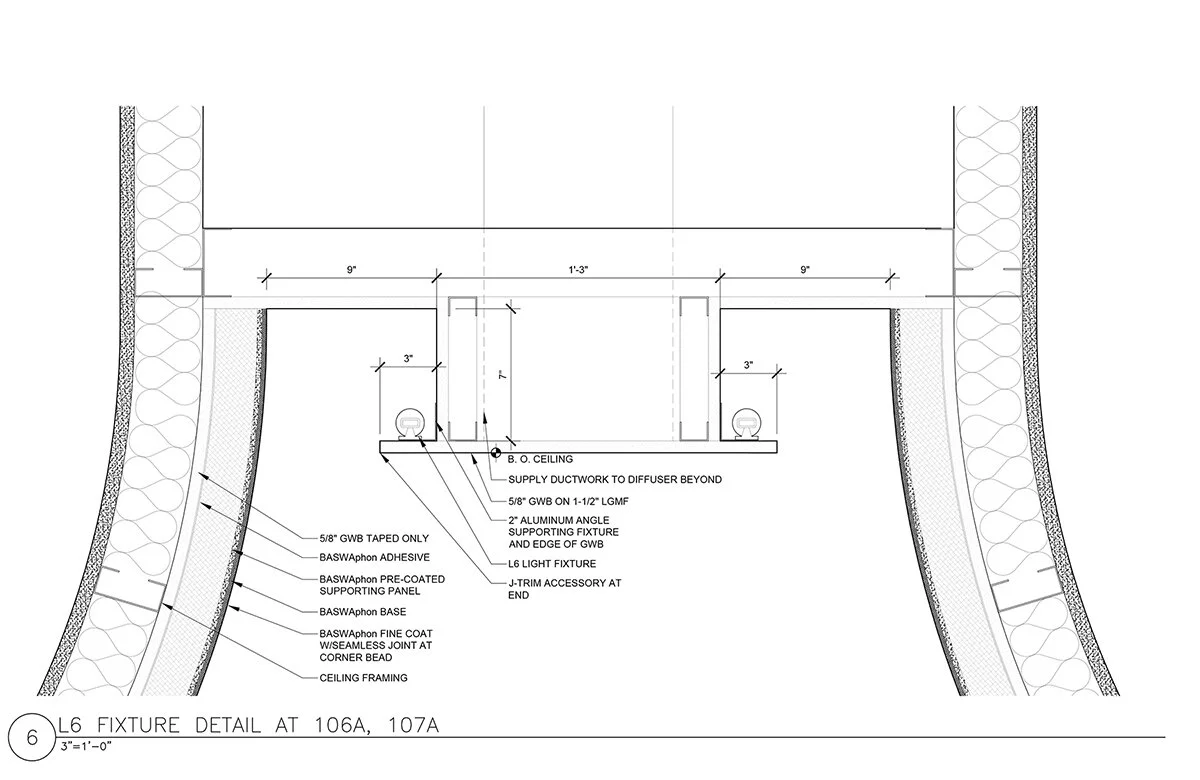

Cove Lighting Detail
-

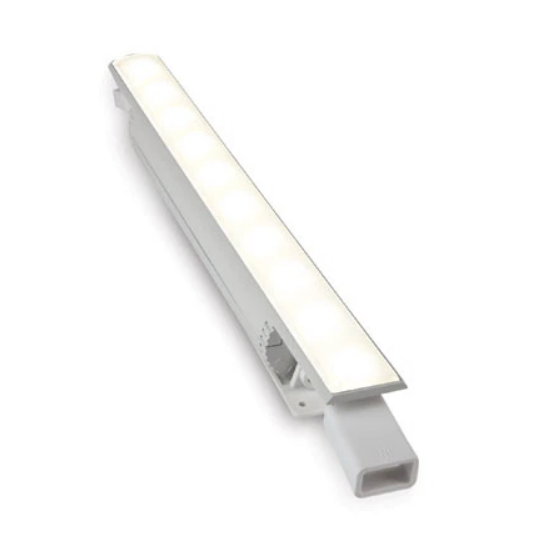

Cove Lighting Luminaire
Click to view the Fixture Schedule
Click to view product page (PDF)
*IES file not currently available
*Revit file not currently available
-

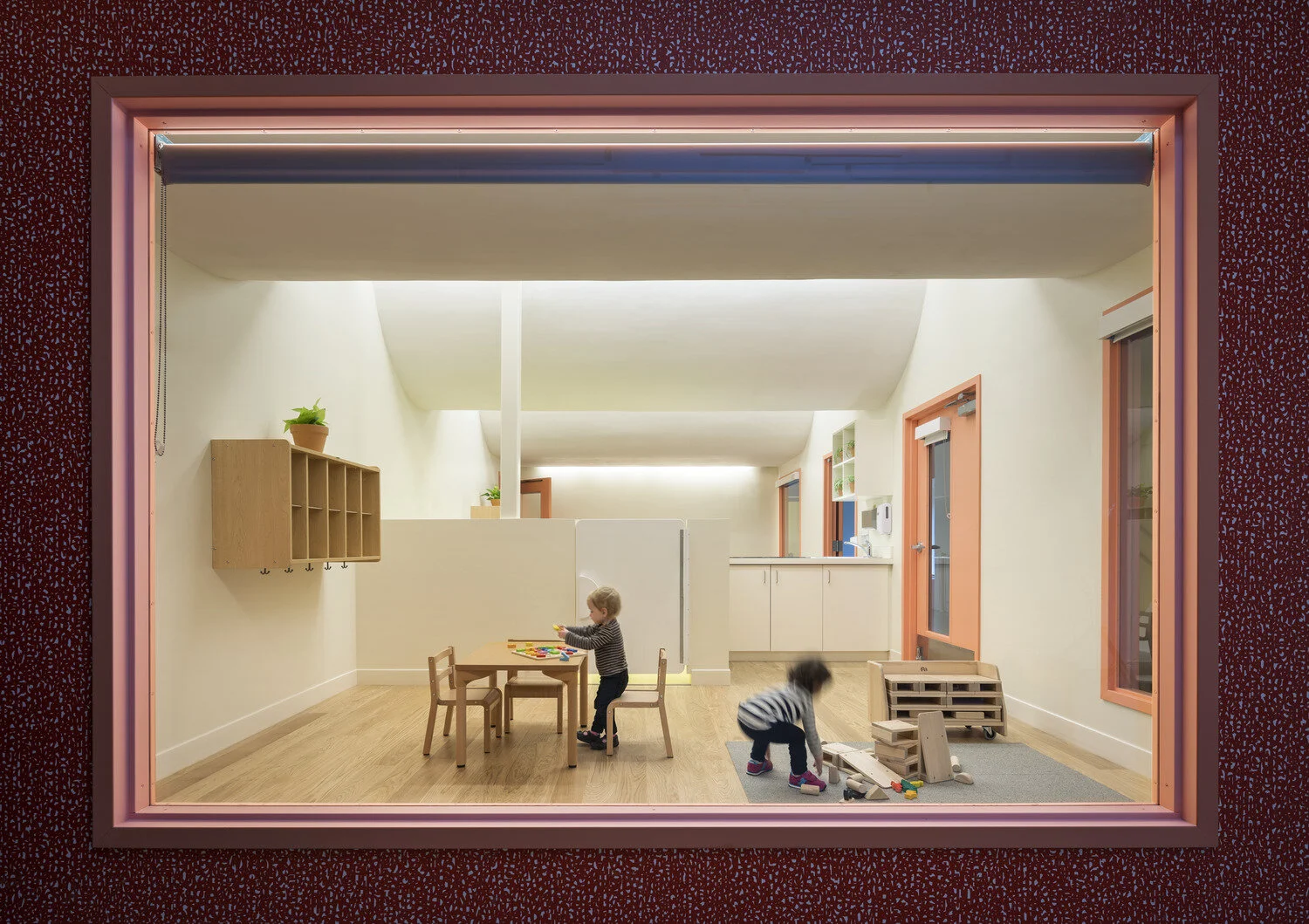

Integrating Building Systems
Faux skylights were constructed in this dwelling with a pair of coves and a solid band in the center, containing and concealing the HVAC and plumbing systems .
-
Brightness v. Contrast
Low glare and balanced contrast lighting combined with the interior design of the dwellings to shape a comfortable learning environment while limiting monotony.
Cove - from Mt. Sinai West
-

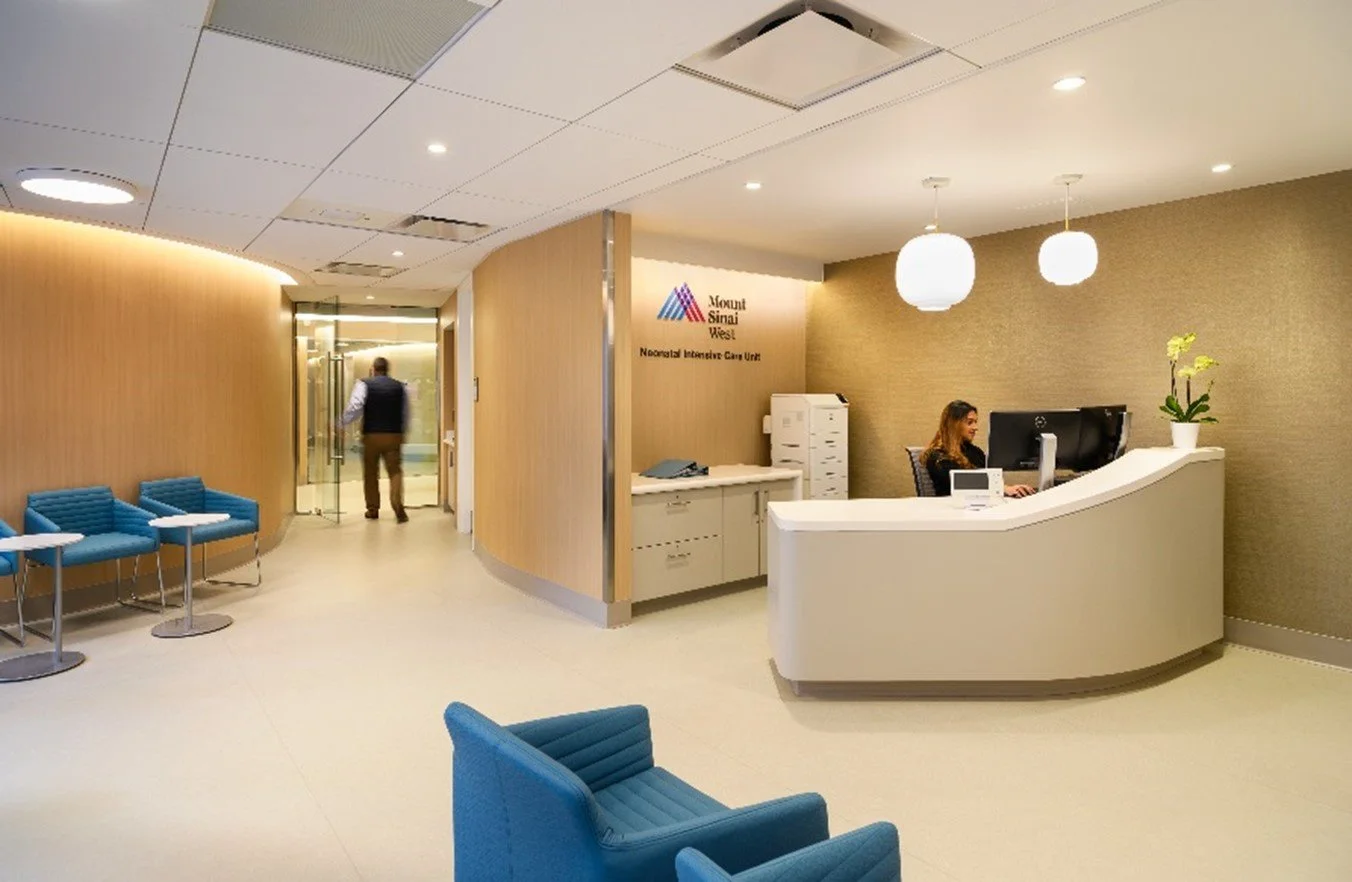

Curved Perimeter Cove Lighting
Curved perimeter coves accenting key walls express warmth through the highlighted wood tones, and simultaneously act as wayfinding devices to transition between the various clinical areas.
-

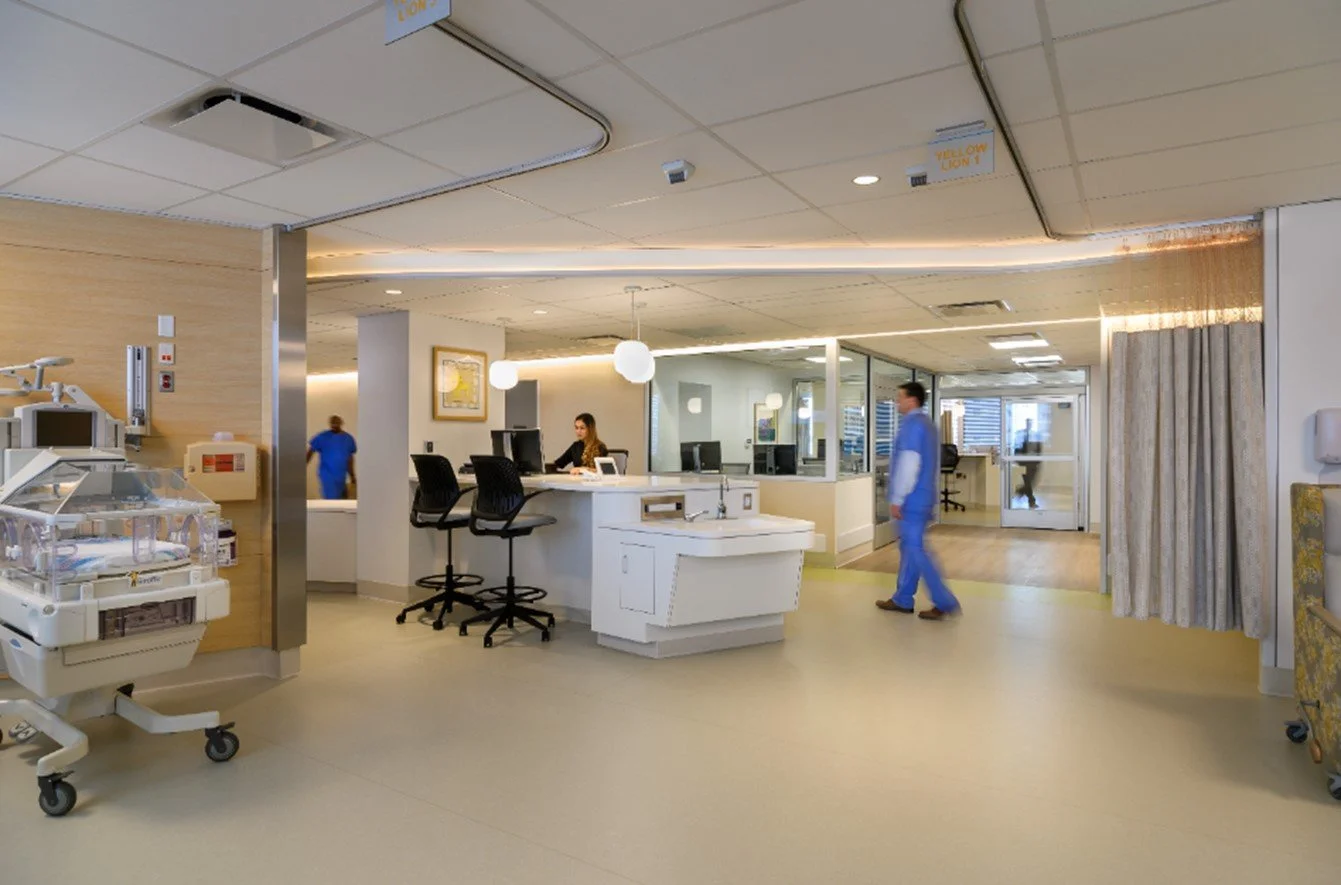

Cove Perimeter Lighting
A continuous silicone jacketed cove follows the nurse stations while perimeter slots trace the core of the building, both providing glare free circulation illuminance levels.
The indirect cove lights in the NICU patient bays utilize a silicone jacketed, flexible tape light that protrudes only 5/8” off the wall, allowing for easy wipe-down cleaning.
Cove - from Potomac
-

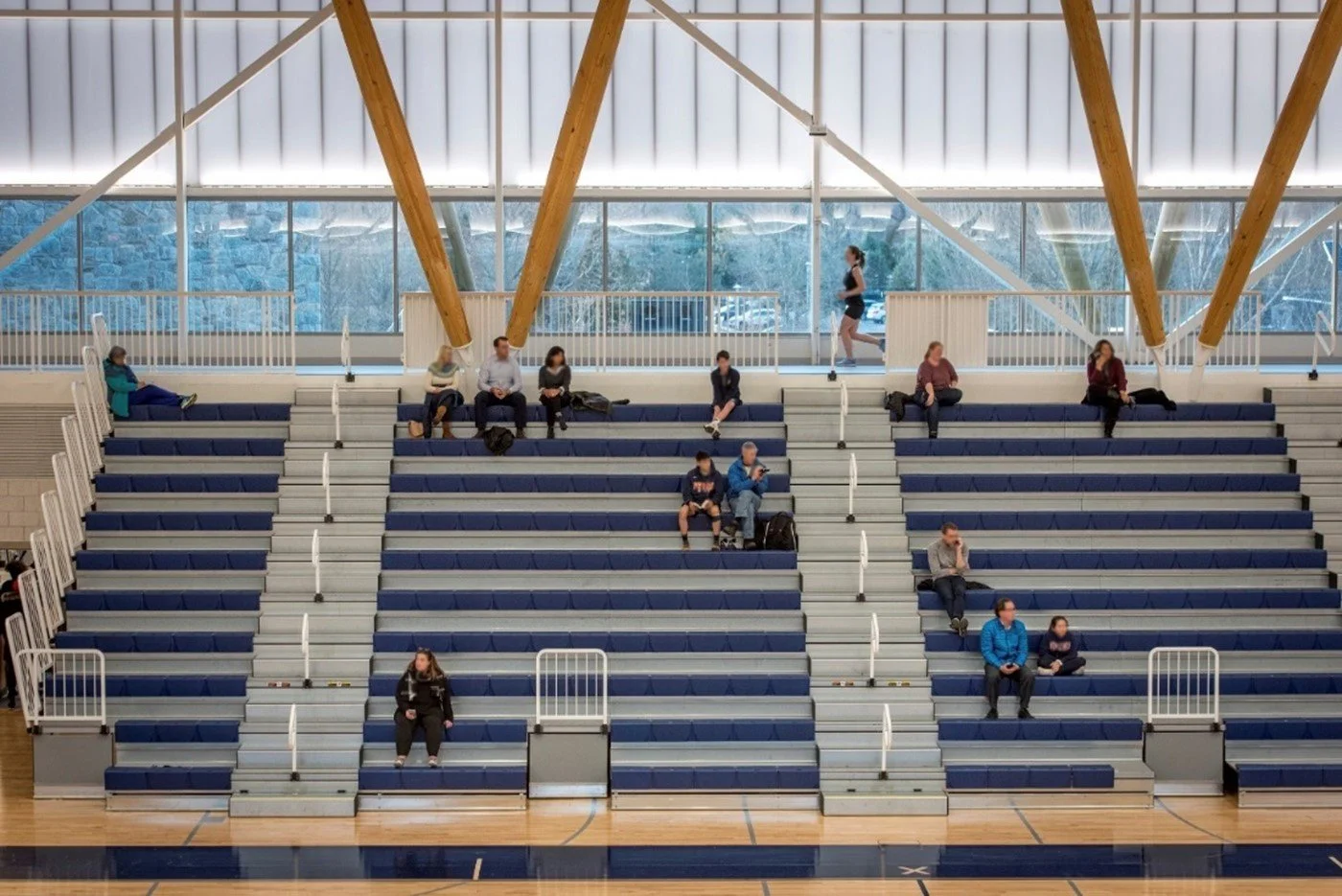

Indirect Cove Lighting
High-performance indirect coves cleanly integrated into structure pull double duty, emphasizing architectural material transitions and providing appropriate illuminance for the track and seating areas.
